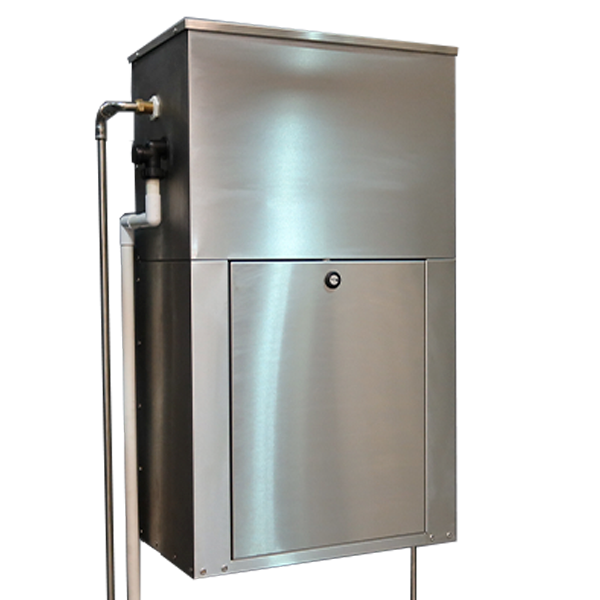

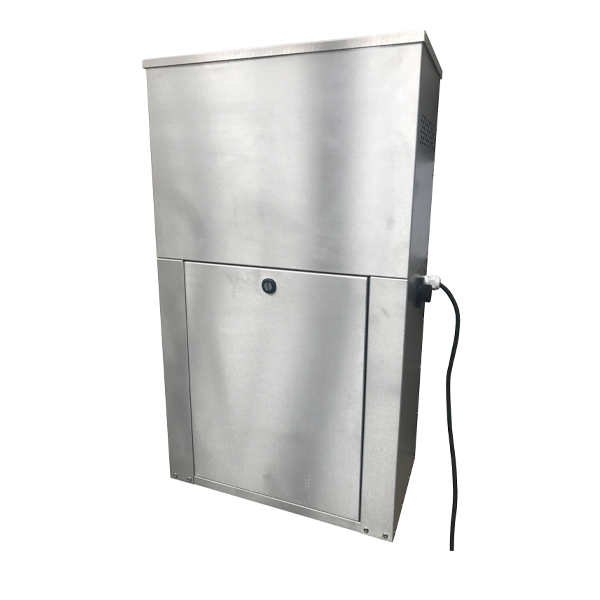

DOMOBOOST PROTEX LITE SS60
The Domoboost Protex Lite SS (Stainless Steel) CAT 5 Packaged Booster Set is a compact wall mounted unit that is supplied with a WRAS Approved integral 18 Litre water storage tank. Fitted with a single brass pump and digital controller. Digital controller with BMS contacts fitted as standard. Suitable for a single outlet.
- Stainless Steel Cabinet
- Single Brass Ended Pump
- WRAS Approved Water Tank
- WRAS Approved Ball Valve
- WRAS Approved Pressure Reducing Valve
- Pre Wired and Tested
- BMS Contacts
Optional Extras
- Easy Fix Wall Mounting Bracket
- Drip tray with combined wall mounting bracket
- GRP Wall Mounted Cover c/w BracketsÂ
- Frost protection heater
Product Dimensions
| Height | Width | Depth | Inlet | Outlet | Overflow |
| 850mm | 480mm | 277mm | 1/2″ | 1/2″ | 21.5mm Solvent |
GRP Wall Cover Dimensions
| Height | Width | Depth |
| 1119mm | 766mm | 431mm |
Specification
| Booster Type | Cat 5 |
|---|---|
| Next Day Available | No |
| Warranty | 2 Year Warranty |
| Dimensions | 480mm x 277mm x 850mm (W x D x H) |
| Power Supply | 230V Single Phase |
| Kw Rating | 0.9 kW |
| Volume / Capacity | 18 Litre |
| Material | Stainless Steel Cabinet |
| Outlet Connection | 1/2″ Threaded |
| Inlet Connection | 1/2″ Threaded |
| Connection Type | 1/2″ |
| Positioning | Wall mounted |
| Orientation | Horizontal |
| System type | Category 5 |
