Do you have a project that requires a cold-water booster set? Then look no further than the Domoboost range from Complete Pump Supplies which are available in single, twin, three, and compact options.
The Domoboost 10-4 single phase variable speed three pump booster set offers a great solution to poor water pressure in commercial buildings. This unit is ideal for increasing the pressure and flow to numerous outlets within a building where the mains water supply is not adequate.

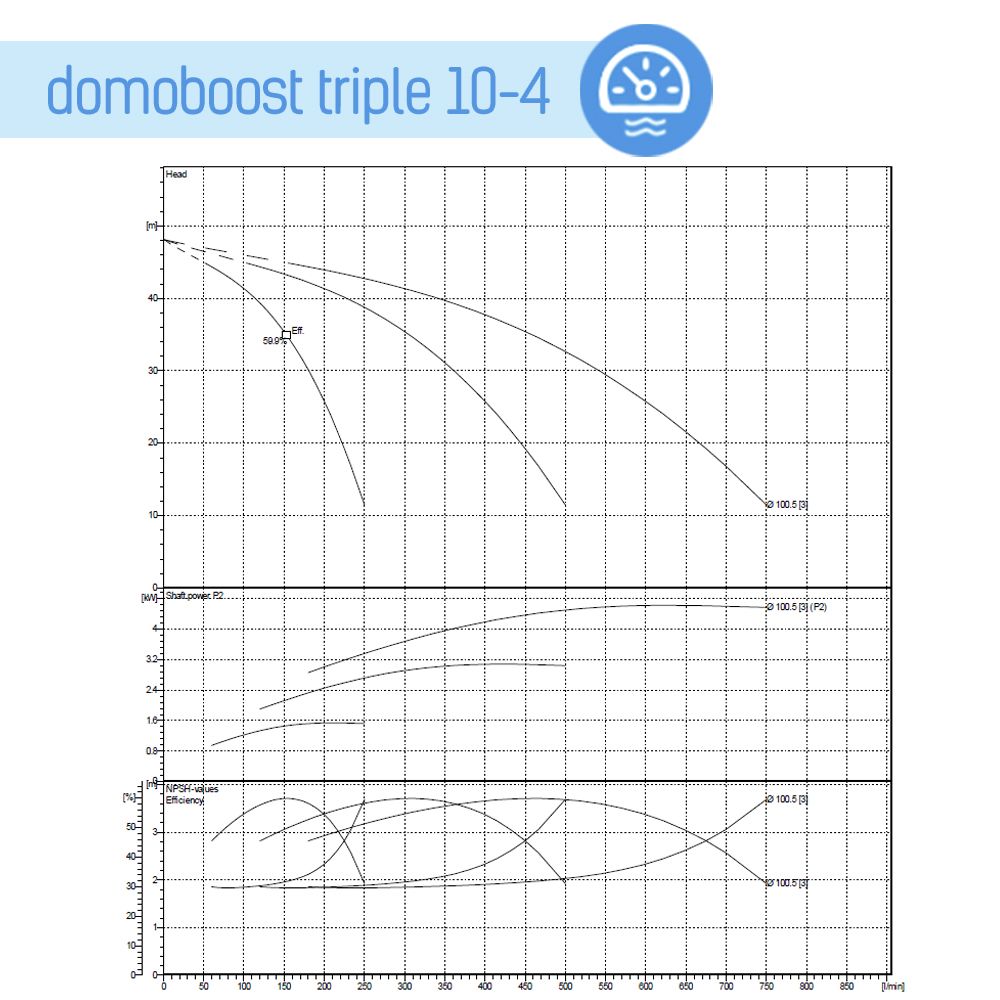

Duties available for this cold water three pump booster set are as follows:
- 540 L/Min @ 3Bar
- 450 L/Min @ 3.5Bar
Please note, the duties above are all pumps running in a duty / assist / assist configuration.
This unit is supplied with 3 no. horizontal multistage centrifugal pumps manufactured from AISI 304 stainless steel. There are also 3 no. variable speed drives installed which are complete with LCD display to indicate system overview and operating parameters such as pressure, speed, frequency and power absorbed. Fitted to the discharge manifold are 3 no. anti-cycle vessels.
This Domoboost also has automatic changeover of the duty pump, volt free contacts for remote alarm and provision for wiring of low-level float switch.
Not sure which model you require or want to know what other products we have to offer? Contact our sales team now for expert help & advice.
From booster sets, water storage tanks, pressurisation units, service and maintenance contracts and much more, please contact our sales team to discuss your project requirements.
Specification
| Booster Type | Three Pump |
| Warranty | 2 Year Warranty |
| Power Supply | 230V Single Phase |
| Kw Rating | 1.5 each Pump (4.5kW Total) |
| Max Flow | 750L/Min |
| Max Head | 4.8Bar |
| Outlet Connection | 2 1/2” Threaded |
| Inlet Connection | 3” Threaded |
| Positioning | Floor standing |
| Orientation | Horizontal |
| System type | Potable (Drinking) |
| Pump Quantity | 3 Pump |
